20' x 8' x 3'
Standard package comes with the following:
The Lark weighing under 8,000lbs can be transported behind a pickup truck. These light weight work boats are still stout enough to be used and abused like the inboard pushers, but has a lighter draft and allows work to be done in very shallow water. Average draft on our standard Lark is 16".
Atlantic Testing Laboratories
The picture below shows 4 of several standard 20' x 8' x 3' Larks used by ATL in Canton,NY.
Notice each rig has 2 std. Larks connected together with our sectional connector system.
30' x 12' x 3'
Sectional Lark built to be used as a 30' x 24' x 3' or 2-30' x 12' x 3's. Completely turn key with new
Yamaha 225 hp outboard engines. Spud wells, spuds, and spud winches were options included.
Call today for quote with the options you want.
The two pictures below show each section with our standard sectional connector system.
4" pipe motor guards on each section. Standard control stands with side railing.

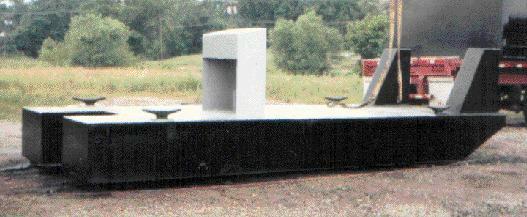

The Lark pictured below is double raked. Double
rakes are optional if needed.
The picture below is a standard Lark with a 3'
x 3' engine well cut out. The well is designed to protect
the outboard motor from getting damaged or knocked off the boat. The well is optional.

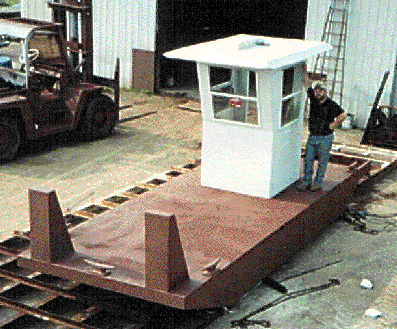

The picture below is of a 20' x 8' x 2' Lark built
of 3/16" steel. Light weight Pilot house with standard
storm windows, which is not our standard marine window, but works well for the money. Twin
outboard motor bracket and 3' push knees.
This picture offers a loading ramp with winch
and king post. Easy for transferring material
or equipment. The 6" side walls was installed to keep material from sliding off the deck.
Control stand with safety hand rails and the built in tool box occupy the stern end.
